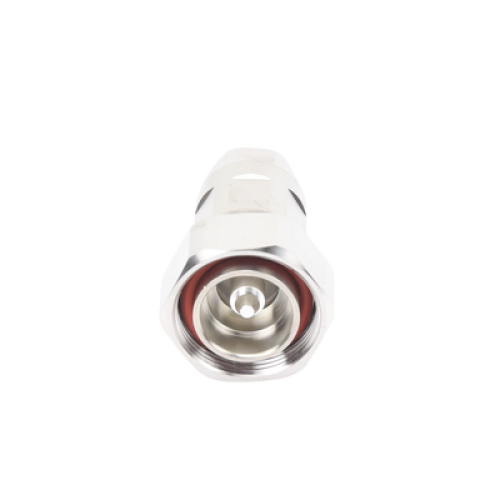

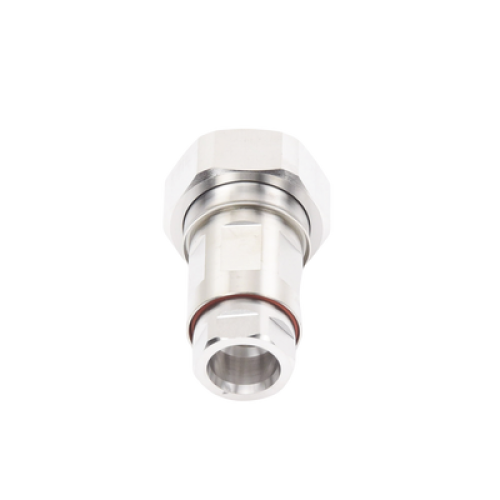

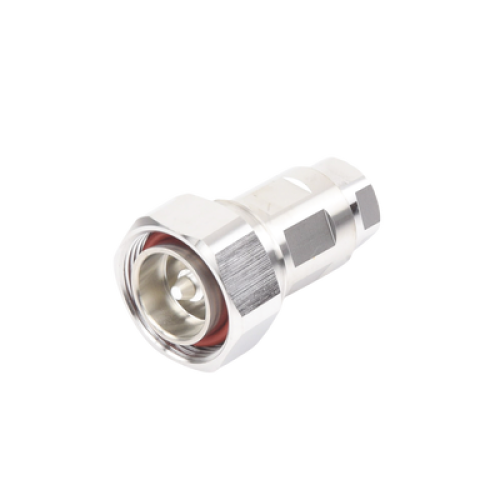

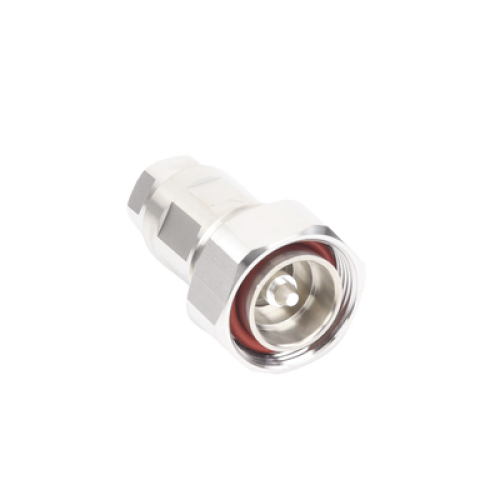

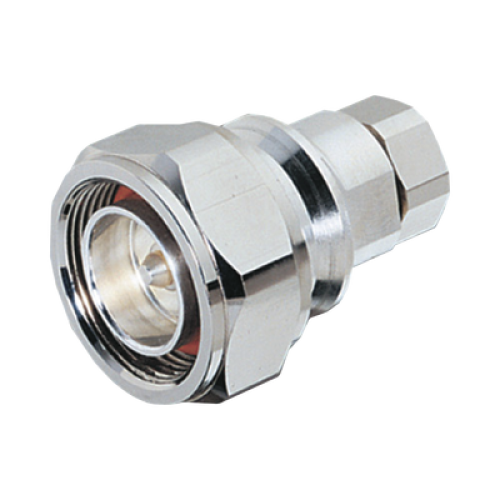

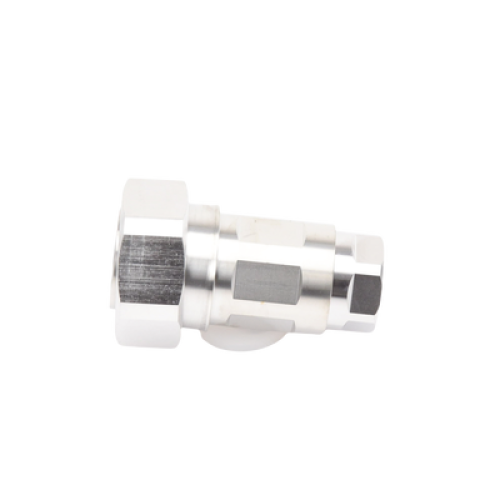

Conector DIN 7/16 Macho Para Cable FSJ4-50B
Conector DIN 7/16 Macho Para Cable FSJ4-50B
Entrega: De 3 a 5 días
(más info.)
EP
todo México.
- Disponibilidad: En Stock
- Marca: ANDREW / COMMSCOPE
- Modelo: F4PDMV2-C
$705.21
MXN
Link a
su móvil
su móvil
Productos misma MARCA
$2,770.55
Sin Iva:$2,770.55
Adaptador para sujetadores tipo mariposa. Instalación en ángulo de hasta 0.63". Paquete de 10 piezas
$1,833.07
Sin Iva:$1,833.07
$190.75
Sin Iva:$190.75
$282.68
Sin Iva:$282.68
$807.28
Sin Iva:$807.28
Electrical Specifications
- Connector Impedance: 50 ohm
- Operating Frequency Band: 0 – 7500 MHz
- Average Power at Frequency: 1.0 kW @ 900 MHz
- Cable Impedance: 50 ohm
- 3rd Order IMD, typical: -120 dBm @ 910 MHz
- 3rd Order IMD Test Method: Two +43 dBm carriers
- RF Operating Voltage, maximum (vrms): 884.00 V
- dc Test Voltage: 2500 V
- Outer Contact Resistance, maximum: 1.50 mOhm
- Inner Contact Resistance, maximum: 0.80 mOhm
- Insulation Resistance, minimum: 5000 MOhm
- Peak Power, maximum: 15.60 kW
- Insertion Loss, typical: 0.05 dB
- Shielding Effectiveness: -110 dB
Para cables coaxiales LPSF-450B, FSJ4-50B
Herramientas recomendadas:
MCPT-1412 -- Herramienta manual para preparar cable Heliax.
